AST6200
Glow Plug Removal Set
AST6200 is a 15-piece Glow Plug Removal Set designed to safely remove seized glow plug bodies in situations where the hex has rounded, broken off or is in a non-usable condition, without causing damage to the cylinder head.
AST6200 is compatible with glow plugs that feature either an M8 x 1.0 or an M10 x 1.0 thread.
- Safely removes seized glow plug bodies without causing damage to the cylinder head
- Suitable for glow plugs with an M8x1.0 or M10x1.0 thread

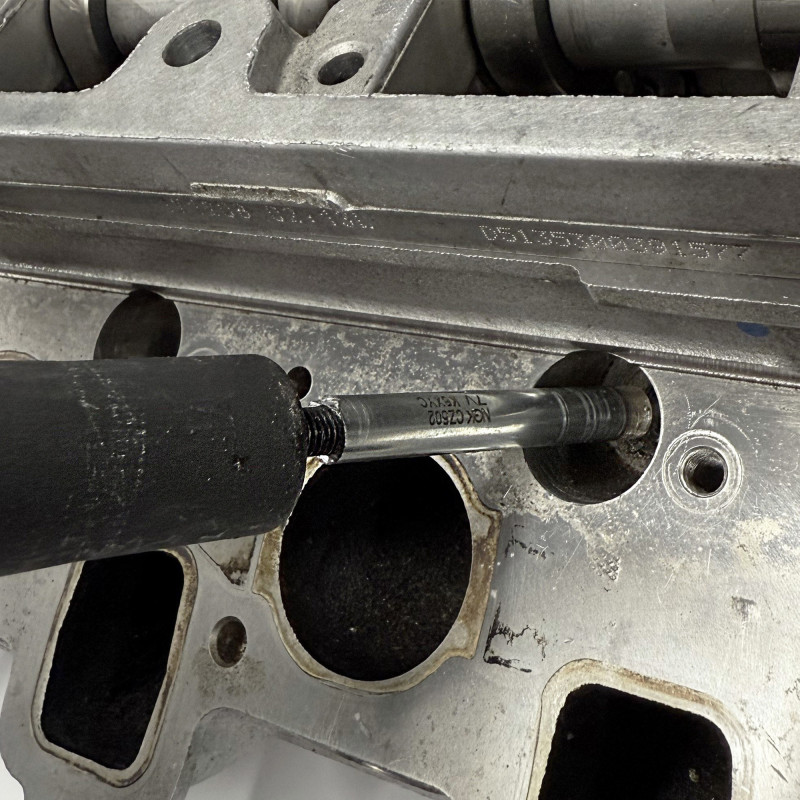

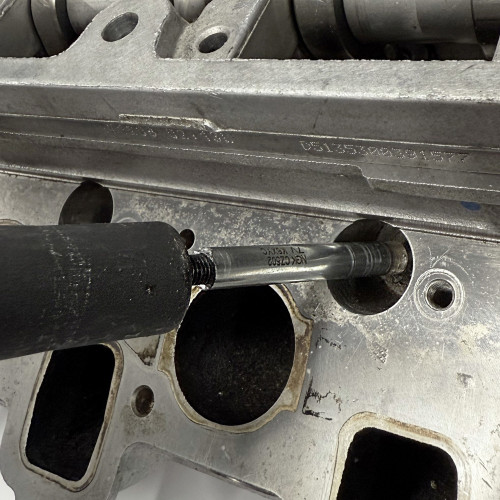

- AST6200 is used to drill out the threads of the seized glow plug so it can be removed from the cylinder head
- Threads can be re-cut and cleaned up using the taps included

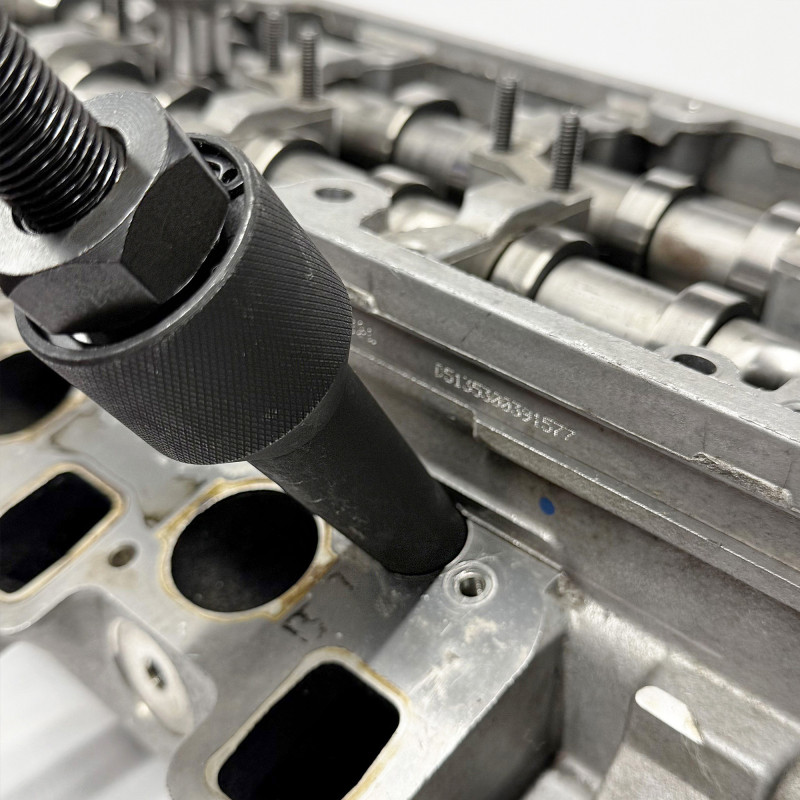

- A mandrel is used to extract the glow plug from its aperture.

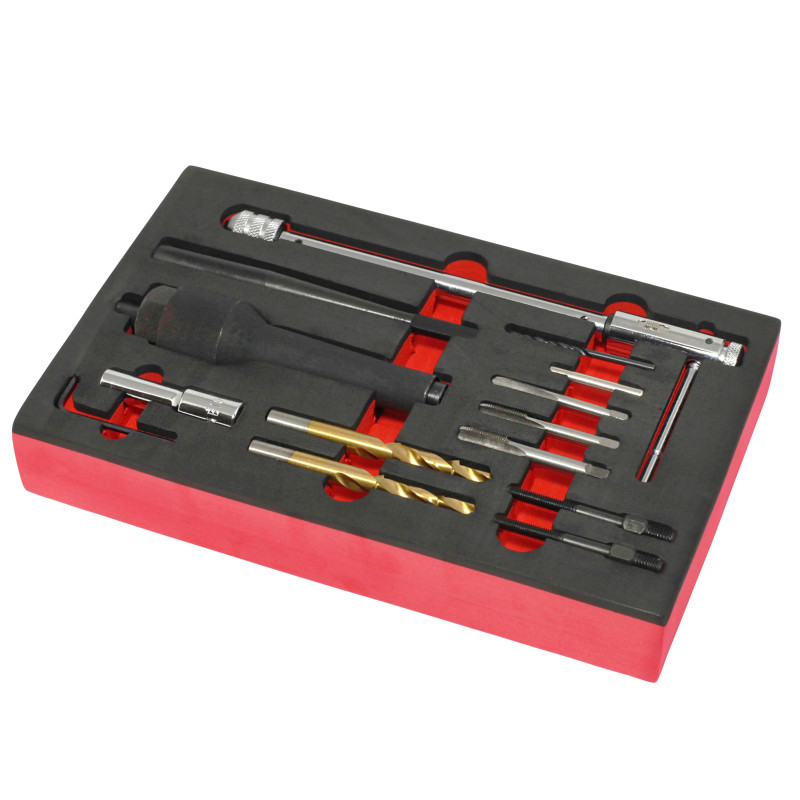

Individual parts within the set:
| AST6200-1 | - | Socket 3/8" Dr |
| AST6200-2 | - | Drill Sleeve |
| AST6200-3 | - | Drill Bit 3.5mm |
| AST6200-4 | - | Pilot Drill Bit 9mm |
| AST6200-5 | - | Pilot Drill Bit 7mm |
| AST6200-6 | - | Drill Extension Adaptor |
| AST6200-7 | - | Hex Key |
| AST6200-8 | - | Ratchet T-bar |
| AST6200-9 | - | 1/4" - 28 Tap |
| AST6200-10 | - | M8 x 1.0 Tap |
| AST6200-11 | - | M10 x 1.0 Tap |
| AST6200-12 | - | Puller Adaptor Mandrel x 2 |
| AST6200-13 | - | Puller |
