AST5319
Upper Oil Sump Alignment Tool - 1.0 / 1.2 - EB0 / EB2 PureTech Engines - DS - Citroën - Peugeot - Opel - Vauxhall - Toyota

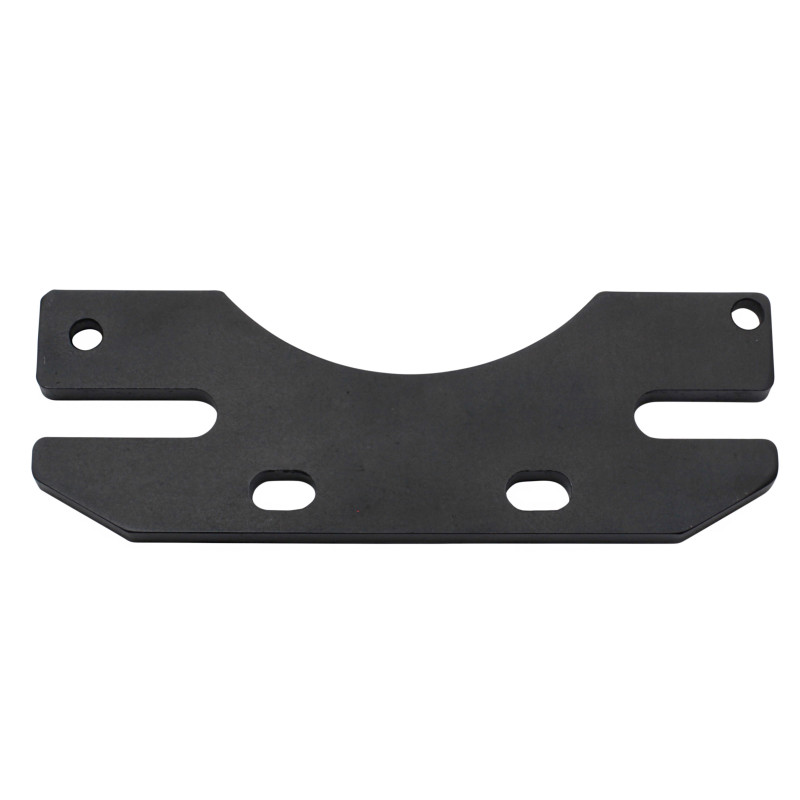

AST5319 has been designed to correctly position the upper sump during oil pump replacement and engine overhaul procedures on Citroën, DS, Peugeot, Opel/Vauxhall and Toyota belt-in-oil PureTech and VVTi engines.
OE References: EN-52132, 0109-4G
Models
Engines
Citroën
- 1.0 & 1.2 EB0 / EB2
- Berlingo IV
- C-Elysee
- C1 II
- C3 Aircross
- C3 III / C3 Picasso
- C3 IV
- C4 Cactus
- C4 III
- C4 Picasso/Grand Picasso II
- C4 Space Tourer/Grand Space Tourer
- C5 Aircross
- DS3/DS3 Cabrio
- DS4
Peugeot
- 1.0 & 1.2 EB0 / EB2
- 108
- 2008
- 208
- 3008
- 301
- 308
- 5008
- 508
- Partner III
- Partner IV
- Rifter
Toyota
- 1.2
- Aygo
- Proace City/Proace City Verso
Vauxhall/Opel
- 1.2 EB2
- Combo-E
- Crossland X
- Grandland X
- Mokka
- 1.0
- EB0 (ZMZ)
- EB0F (ZMZ)
- ZMZ (EB0)
- ZMZ (EB0F)
- 1.2
- EB2 (HMV)
- EB2 (HMZ)
- EB2ADT (HNP)
- EB2ADTD (HNK)
- EB2ADTS
- EB2ADTS (HNS)
- EB2ADTX (HNN)
- EB2D (HMT)
- EB2DT (HNZ)
- EB2DTM (HNV)
- EB2DTS (HNW)
- EB2DTS (HNY)
- EB2DTSM (HNW)
- EB2F (HMZ)
- EB2M (HMY)
You may also be interested in:

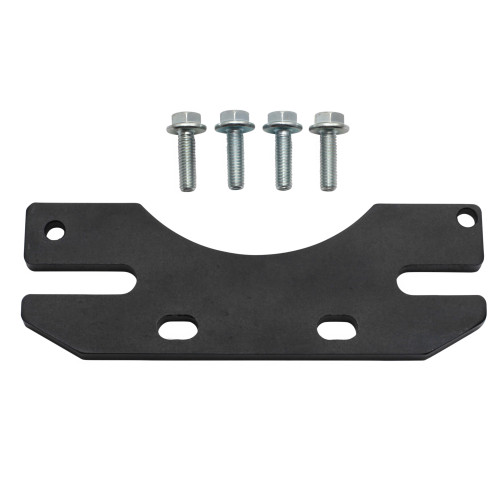

OEM tool codes included in this kit:
- 0109-4G
- EN-52132
Notes:
Procedure:
- Install AST5319 on the engine block using the bolts from the crankshaft sensor plate
- Apply sealant to the mating face of the upper sump as shown in the OE technical information
- Locate the upper sump in position beneath the engine
- Ensure the bolt holes on the upper sump are aligned with the bolt holes on AST5319
- Install the retaining bolts through AST5319 and into the upper sump
- Tighten only finger tight so that some vertical movement is still possible
- Install the upper sump retaining bolts as described in the OE technical information
- Remove AST5319 from the engine
