Diesel 2.0 / 2.2 / 2.4 / 3.2 TDCi / TDdi (Chain) H.P. Fuel Pump Removal & Installation - FORD

AST5195  Diesel Engine High Pressure Fuel Pump Removal and Installation kit contains the tooling required for high pressure fuel pump replacement on Ford Duratorq 'Puma' diesel engines fitted with a chain driven fuel pump.


    •  Minimises disassembly time - timing chain assembly does not need to be disturbed

    •  Suitable for 2.0, 2.2, 2.4, 3.2 TDCi/TDdi engines fitted in a number of commercial

        vehicles, including Ford Transit, Transit Custom, Ranger, LDV Convoy and

        Land Rover Defender

    •  Also covers Ford Mondeo, Jaguar X-Type and London Taxi International TXII

     For timing chain removal/installation procedures see AST5105

    •  Flywheel /Crankshaft Sensor positioning pins are also available, part number AST5199

Models
Engines

Ford

  • 2.0 / 2.2 / 2.4 / 2.4 / 3.2 TDCi / TDdi
  • Mondeo (00)
  • Ranger ('12)
  • Tourneo Custom
  • Transit ('06)
  • Transit ('14)
  • Transit (00)
  • Transit Custom

Jaguar

  • 2.0 / 2.2
  • X-Type (X400)(01-10)

Land Rover

  • 2.2 / 2.4 TD
  • Defender

LDV

  • 2.4 TD/TDi
  • Convoy
  • 2.0
  • ABFA
  • D3FA
  • D5BA
  • D6BA
  • F3FA
  • FIFA
  • FMBA
  • FMBB
  • HJBA
  • HJBB
  • HJBC
  • HJBE
  • N7BA
  • N7BB
  • SDBA
  • 2.2
  • BG
  • CVR5
  • CVRA
  • CVRB
  • CYR5
  • CYRA
  • CYRB
  • DRR5
  • DRRA
  • DRRB
  • GBVAJ
  • GBVAJPF
  • GBVAJQJ
  • GBVAJQW
  • ID4/DT224
  • QJBA
  • QJBB
  • QJBC
  • QJBD
  • UHR5
  • USRA
  • USRB
  • 2.4
  • 244DT
  • D2FA
  • D2FB
  • D4FA
  • F4FA
  • FXFA
  • H9FA
  • H9FB
  • H9FD
  • JXFA
  • JXFC
  • PHFA
  • PHFC
  • ZSD 424
  • 3.2
  • SAFA
  • SAFB

With this kit you may also need:

Diesel 2.0 / 2.2 / 2.4 / 3.2 TDCi / TDdi (Chain) Engine Setting / Locking Kit - FORD
AST5105

Diesel 2.0 / 2.2 / 2.4 / 3.2 TDCi / TDdi (Chain) Engine Setting / Locking Kit - FORD

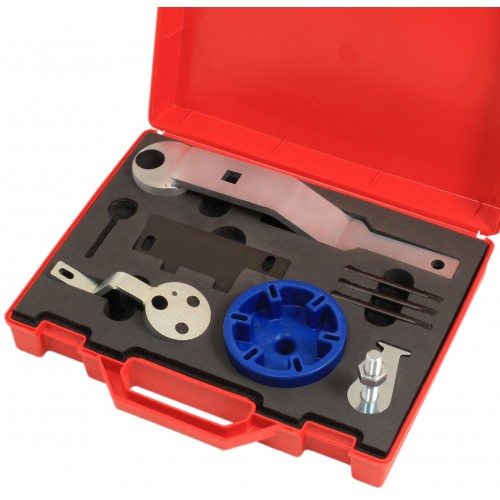

AST5105 Timing Chain Setting / Locking Kit contains the tooling required when removing and installing the engine timing chain on all 'Puma' Duratorq diesel engines, including 2.0, 2.2, 2.4 and 3.2 TDCi and TDdi variants fitted in vehicles from 2000 onwards.

This range of engines has been fitted to a number of light commercial vehicles including Ford Transit & Transit Custom, Citroën Relay, Peugeot Boxer, Fiat Ducato as well as passenger vehicles such as Ford Mondeo, Jaguar X-Type, London Taxi and Land Rover Defender.

AST5105 covers front and rear wheel drive vehicles as well as engines with chain driven or camshaft driven fuel pumps. Also included within the kit are the oil pump setting tool, required for the correct installation of the oil pump and a flywheel locking tool, used for any application requiring the crankshaft to be locked in position.

When carrying out removal and installation of the high pressure fuel pump, the timing chain does not need to be disturbed, therefore pump replacement tooling and procedures are covered by a separate kit.

Diesel 2.0 / 2.2 / 2.4 / 3.2 TDCi / TDdi (Chain) Engine Setting / Locking Kit - FORD
Diesel 2.0 / 2.2 / 2.4 / 3.2  TDCi / TDdi (Chain) Engine Setting / Locking Kit - FORD - PSA
AST5098

Diesel 2.0 / 2.2 / 2.4 / 3.2 TDCi / TDdi (Chain) Engine Setting / Locking Kit - FORD - PSA

AST5098 Timing chain setting/locking kit contains the basic tooling required when removing and installing the camshaft timing chain on all 'Puma' Duratorq diesel engines fitted in vehicles from 2000 to 2018.  AST5098 covers front and rear wheel drive vehicles as well as engines with chain driven or camshaft driven fuel pumps.


This range of engines has been fitted to a number of light commercial vehicles including Ford Transit & Transit Custom, Citroën Relay, Peugeot Boxer, Fiat Ducato as well as passenger vehicles such as Ford Mondeo, Jaguar X-Type, London Taxi and Land Rover Defender.


When carrying out removal and installation of the high pressure fuel pump, the timing chain does not need to be disturbed. Pump removal and installation is covered by a separate kit - see AST5195.


A larger timing chain kit option, which includes the oil pump setting tool, flywheel locking tool and crankshaft pulley hold tool is available: see AST5105.

Diesel 2.0 / 2.2 / 2.4 / 3.2  TDCi / TDdi (Chain) Engine Setting / Locking Kit - FORD - PSA
Diesel 2.0 / 2.2 / 2.4 / 3.2 TDCi / TDdi (Chain) Engine Crankshaft Position Sensor Setting Pin Set - FORD
AST5199

Diesel 2.0 / 2.2 / 2.4 / 3.2 TDCi / TDdi (Chain) Engine Crankshaft Position Sensor Setting Pin Set - FORD

AST5199 Crankshaft Position Sensor Setting Pin Set for 2.0, 2.2, 2.4 and 3.2 TDCi/TDdi Duratorq 'Puma' Diesel Engines in Ford Mondeo, Transit, Transit Custom and Ranger FWD, RWD and AWD vehicles.


    •  Ensures that the Crankshaft Position Sensor is installed in the correct position

     Suitable for ALL  'Puma Duratorq engines 2000-2018

    •  Includes Ford engines fitted in Citroën Relay, Peugeot Boxer and Fiat Ducato

    •  Suitable for  passenger vehicles such as Jaguar X-Type, TXII Taxi and L-R Defender

    •  For Timing Chain Removal / Installation see product number AST5105

    •  For High Pressure Fuel Pump Removal / Installation see product number AST5195

    •  Equivalent to OE References: 303-698, 303-675, 303-1562

Diesel 2.0 / 2.2 / 2.4 / 3.2 TDCi / TDdi (Chain) Engine Crankshaft Position Sensor Setting Pin Set - FORD

OEM tool codes included in this kit:

  • 303-1151
  • 303-1317
  • 303-249
  • 303-249-01

Notes:

AST5195 covers applications in Ford, Jaguar, Land Rover, LDV and  LTI .
