Auxiliary Belt Tensioner Tool Set - 1.4 / 1.5 / 1.6 / 2.0 / 2.2 Diesel Engines FORD - PSA

AST5188

Auxiliary Belt Tensioner Tool Set - 1.4 / 1.5 / 1.6 / 2.0 / 2.2 Diesel Engines FORD - PSA

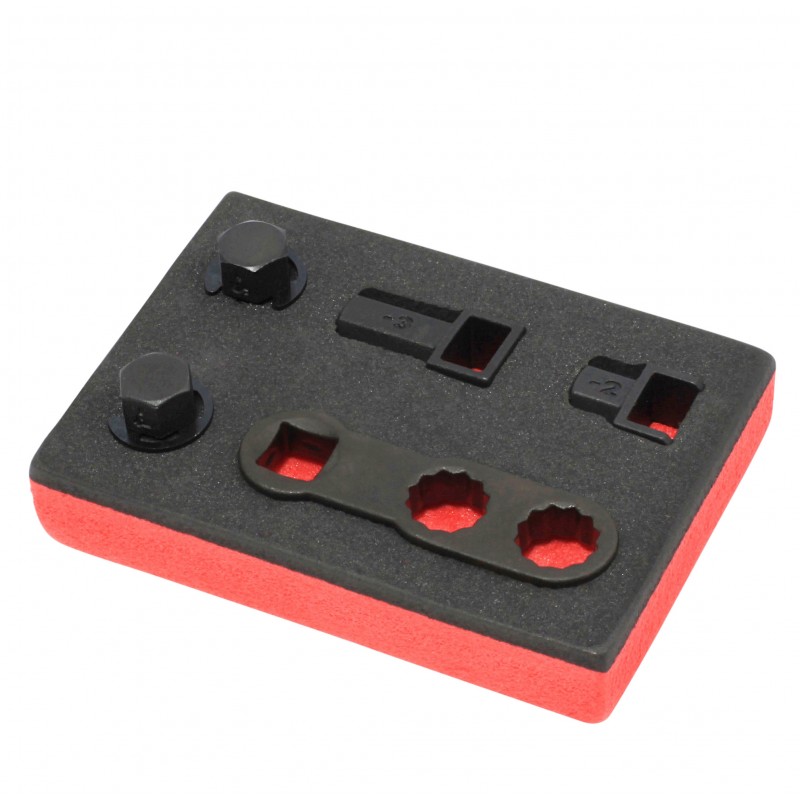

AST5188 Auxiliary Belt Tensioner Set provides a safe and controlled method of adjusting the tensioner position during removal and installation of  the auxiliary belt.

The tensioner features a raised peg, which acts as a location to apply leverage to the tensioner to remove or install the belt.

AST5188 contains a series of  adaptors, along with an extension bar to allow easy purchase on the raised peg, which can then be used with an appropriate tensioner wrench and low profile thin walled socket such as the items contained in the set AST4594A.

Removal and installation of the auxiliary belt often coincides with the changing of the engine timing belt and therefore this tool can be used along with Engine Setting & Locking Kits AST4735A, AST4820, AST4830, AST5100AFORD and AST5100APSA.


Also used on 2.0 / 2.2  DW10 and DW12 engines.

Models
Engines

Citroën

  • 1.4 / 1.6 HDi 8v. / 16v.
  • C1 / C2
  • C3 III
  • C3 Pluriel
  • C4 Picasso

Ford

  • 1.4, 1.5, 1.6 TDCi / ECOnetic 8v. / 16v.
  • B-MAX
  • C-Max
  • EcoSport
  • Fiesta
  • Focus
  • Focus C-Max
  • Fusion
  • Galaxy
  • Grand C-Max
  • Mondeo
  • S-MAX
  • Tourneo Connect
  • Tourneo Courier
  • Transit Connect
  • Transit Courier

Mazda

  • 1.4 / 1.6 TDCi 8v. / 16v.
  • 2 (DE/DH)
  • 3 (BK/BL)

Mini

  • 1.6 16v.
  • Mini Clubman
  • Mini Cooper
  • Mini One
  • R55/R56

Peugeot

  • 1.4 / 1.6 HDi 8v. / 16v.
  • 1007
  • 107
  • 206
  • 206 CC
  • 206 SW
  • 307
  • 307 SW
  • 508

Toyota

  • 1.4 DiD 8v.
  • Aygo

Volvo

  • 1.6 D4 16v.
  • C30
  • S40
  • S80
  • V50
  • V70
  • 1.4
  • 2WZTV
  • 8HT (DV4TD)
  • 8HX (DV4TD)
  • 8HY (DV4TED4)
  • 8HZ (DV4TD)
  • DV4
  • DV4TD (8HZ/8HX/8HT)
  • F6JB
  • F6JD
  • KVJA
  • 1.5
  • AEDA
  • ENUG
  • UGCA
  • UGCB
  • UGCC
  • UGJC
  • UGJE
  • UGJG
  • XUCA
  • XUCC
  • XUCD
  • XUGA
  • XUJA
  • XUJB
  • XUJC
  • XVCA
  • XVCB
  • XVCC
  • XVGA
  • XVGB
  • XVGC
  • XVJA
  • XVJB
  • XVJC
  • XVJD
  • XVJE
  • XWDA
  • XWDB
  • XWDC
  • XWDD
  • XWDE
  • XWGA
  • XWGB
  • XWJA
  • XXDA
  • XXDB
  • XXDC
  • XXDD
  • 1.6
  • 9H01 (DV6TED4)
  • 9HX (DV6ATED4)
  • D4164T
  • DV6
  • DV6ATED4 (9HX)
  • DV6TED4 (9HY/9HZ)
  • G8DA
  • G8DB
  • G8DC
  • G8DD
  • G8DE
  • G8DF
  • GPDA
  • GPDB
  • GPDC
  • HHDA
  • HHDB
  • HHJA
  • HHJB
  • HHJC
  • HHJD
  • HHJE
  • HHJF
  • MTDA
  • MZ-CD (Y6)
  • NGCA
  • NGDA
  • NGDB
  • T1BA
  • T1BB
  • T1BC
  • T1WA
  • T1WB
  • T3CA
  • T3CB
  • T3CC
  • T3DA
  • T3DB
  • T3JA
  • T3JB
  • TZGA
  • TZGB
  • TZJA
  • TZJB
  • U3CA
  • UBGA
  • UBJA
  • W16 D16 (9HZ)
  • Y6
  • 2.0
  • DW10
  • 2.2
  • DW12

With this kit you may also need:

Diesel 1.4 / 1.5 / 1.6 (Belt)
AST4735A

Diesel 1.4 / 1.5 / 1.6 (Belt)

Diesel 1.4 / 1.5 / 1.6 (Belt)
Diesel 1.4 to 2.2 HDi - DV4 / DV6 / DW10 / DW12 Engine Setting / Locking Kit (Belt) - PSA
AST4820

Diesel 1.4 to 2.2 HDi - DV4 / DV6 / DW10 / DW12 Engine Setting / Locking Kit (Belt) - PSA

Diesel 1.4 to 2.2 HDi - DV4 / DV6 / DW10 / DW12 Engine Setting / Locking Kit (Belt) - PSA
Diesel 1.4 / 1.5 / 1.6 TDCi, 1.8 T/TDdi/TDCi, 2.0 / 2.2 TDCi Duratorq (Belt)
AST4830

Diesel 1.4 / 1.5 / 1.6 TDCi, 1.8 T/TDdi/TDCi, 2.0 / 2.2 TDCi Duratorq (Belt)

Diesel 1.4 / 1.5 / 1.6 TDCi, 1.8 T/TDdi/TDCi, 2.0 / 2.2 TDCi Duratorq (Belt)
MASTER KIT - FORD  Petrol / Diesel 1.0 - 3.2 Engine Setting / Locking (Belt / Chain)
AST5100AFORD

MASTER KIT - FORD Petrol / Diesel 1.0 - 3.2 Engine Setting / Locking (Belt / Chain)

AST5100AFORD Engine Setting / Locking Kit is a comprehensive set of tools for use on a large range of FORD models.

Supplied in a two colour routed foam, the tool sets are designed to fit inside the drawers of most quality tool trolleys. The layout of the tools in the foam enables quick and easy identification of the tools and easily shows any missing items. The product is supplied with a CD detailing all of the model applications, engine codes, user instructions and OEM cross references. This set forms part of a New Modular System being developed by AST Tools.


Typical Engine Sizes:

Belt Engines

Petrol:  1.0, 1.25, 1.4, 1.5, 1.6, 1.7, 1.8, 2.0

Diesel:  1.4, 1.5, 1.6, 1.8, 2.0, 2.2

Chain Engines

Petrol:  1.8, 2.0, 2.3

Diesel:  1.8, 2.0, 2.2, 2.4, 3.2


Foam Details:

Dimensions - 565mm (L) x 390mm (W) x 75mm (H)

Weight -  9 kg

MASTER KIT - FORD  Petrol / Diesel 1.0 - 3.2 Engine Setting / Locking (Belt / Chain)
MASTER KIT - PSA GROUP - CITROËN -PEUGEOT Petrol / Diesel 1.0 - 2.5 Engine Setting / Locking (Belt)
AST5100APSA

MASTER KIT - PSA GROUP - CITROËN -PEUGEOT Petrol / Diesel 1.0 - 2.5 Engine Setting / Locking (Belt)

AST5100APSA Engine Setting / Locking Kit is a comprehensive set of tools for use on a large range of CITROËN / PEUGEOT models.

Supplied in a two colour routed foam, the tool sets are designed to fit inside the drawers of most quality tool trolleys. The layout of the tools in the foam enables quick and easy identification of the tools and easily shows any missing items. The product is supplied with a CD detailing all of the model applications, engine codes, user instructions and OEM cross references. This set forms part of a New Modular System developed by AST Tools.


Typical Engine Sizes:

Belt Engines

Petrol: 1.0 VTi, 1.1, 1.2 VTi, 1.4, 1.6/1.6 16v, 1.8 /1.8 16v., 2.0/2.0 16v., 2.0 Turbo, 2.0 HPi, 2.2 16v.

Diesel: 1.4HDi, 1.5, 1.6HDi, 1.7, 1.9, 2.0HDi, 2.2HDi, 2.5


Foam Details:

Dimensions - 565mm (L) x 390mm (W) x 57mm (H)

Weight - 5kg

MASTER KIT - PSA GROUP - CITROËN -PEUGEOT Petrol / Diesel 1.0 - 2.5 Engine Setting / Locking (Belt)
Auxiliary Belt Tensioner Tool Set
AST4594A

Auxiliary Belt Tensioner Tool Set

•  Designed to overcome restricted working space in this area of the engine compartment

  Ratchet Mechanism provides quick & accurate tool position adjustment

•  Uprated handle design to cover the latest tensioners (max torque 100Nm)

  Complete with 13mm, 14mm, 15mm, 16mm & 18mm sockets, plus 3/8" and 1/2" drives

•  Can be used with Auxiliary Belt Tensioner Tool Set AST5188

•  Set consists of Tensioner Wrench AST4594A-1 and Socket Set AST4594-20


Individual Sockets within the set:

  •     1/2" Square Drive     -    AST4594-12
  •     13mm Socket            -    AST4594-13
  •     14mm Socket            -    AST4594-14
  •     15mm Socket            -    AST4594-15
  •     16mm Socket            -    AST4594-16
  •     18mm Socket            -    AST4594-18
  •     3/8" Square Drive     -    AST4594-38
Auxiliary Belt Tensioner Tool Set

OEM tool codes included in this kit:

  • 01099
  • 0188-Z
  • G-01099
  • PZ4L0-G0109-90

Notes:

This Auxiliary Belt Tensioner Set covers applications in Citroën, Ford, Mazda, Mini, Peugeot, Toyota and Volvo models.
