Auxiliary Belt Removal & Installation Set

AST4765A

Auxiliary Belt Removal & Installation Set


•  Designed to overcome restricted working space in this area of the engine compartment.

•  Ratchet Mechanism provides quick & accurate tool position adjustment

•  Uprated handle design to cover the latest tensioners (max torque 100Nm)

  Complete with 13mm, 14mm, 15mm, 16mm & 18mm sockets plus 3/8" and 1/2" drives.

•  Belt Remover / Installer - provides reach & manoeuvrability to thread the belt around the pulley system

•  Can be used with Auxiliary Belt Tensioner Tool Set AST5188

•  Set consists of Tensioner Wrench AST4594A-1, Socket/Drive Set AST4594-20 and Belt Installation Tool AST4721


Individual Sockets within the set:

  • 13mm Socket    -    AST4594-13
  • 14mm Socket    -    AST4594-14
  • 15mm Socket    -    AST4594-15
  • 16mm Socket    -    AST4594-16
  • 18mm Socket    -    AST4594-18
  • 1/2" Sq Drive      -    AST4594-12
  • 3/8" Sq Drive     -    AST4594-38

With this set you may also need:

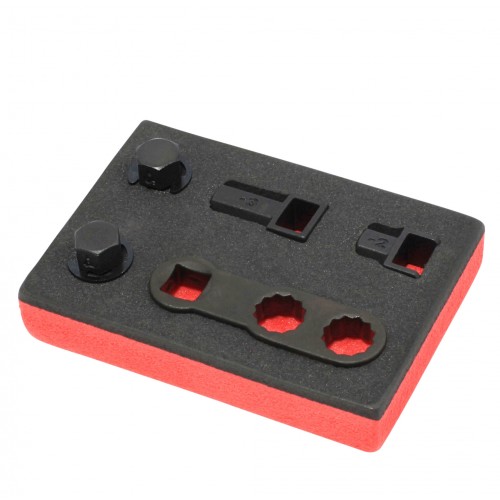

Auxiliary Belt Tensioner Tool Set - 1.4 / 1.5 / 1.6 / 2.0 / 2.2 Diesel Engines FORD - PSA
AST5188

Auxiliary Belt Tensioner Tool Set - 1.4 / 1.5 / 1.6 / 2.0 / 2.2 Diesel Engines FORD - PSA

AST5188 Auxiliary Belt Tensioner Set provides a safe and controlled method of adjusting the tensioner position during removal and installation of  the auxiliary belt.

The tensioner features a raised peg, which acts as a location to apply leverage to the tensioner to remove or install the belt.

AST5188 contains a series of  adaptors, along with an extension bar to allow easy purchase on the raised peg, which can then be used with an appropriate tensioner wrench and low profile thin walled socket such as the items contained in the set AST4594A.

Removal and installation of the auxiliary belt often coincides with the changing of the engine timing belt and therefore this tool can be used along with Engine Setting & Locking Kits AST4735A, AST4820, AST4830, AST5100AFORD and AST5100APSA.


Also used on 2.0 / 2.2  DW10 and DW12 engines.

Auxiliary Belt Tensioner Tool Set - 1.4 / 1.5 / 1.6 / 2.0 / 2.2 Diesel Engines FORD - PSA
